The O'Ring Seal is deep inside the case and wraps tightly around the cable jacket to keep things dry.

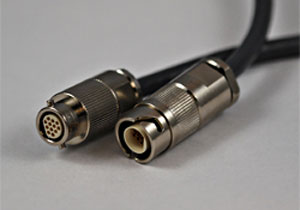

Omnetics micro series of circular connectors are now available with twist lock shells.
The locking mechanism is a simple quarter turn, similar to those commonly used in BNC connectors.
When combined with a jacketed cable, these connectors are available with an IP67 seal.
These high-density multi-position connectors are available in sizes from two to 27 positions and have contacts arranged on a .050" (.64 mm) pitch.
Utilising a military quality contact system, these connectors are ideal for applications where size, weight, and rugged reliability are critical.
Many standard and custom options are available including bulkhead mounts, cable harnesses, specialty metals and plating.
For further details, contact Clarke & Severn Electronics on 02 9482 1944, email sales@clarke.com.au or visit www.clarke.com.au and follow the links to Omnetics.
