Up to 12 processing cores designed with new 32 nm technology offer high performance density and offer virtualisation functionality, allowing formerly separate apps to be moved onto a single, cost-effective system.

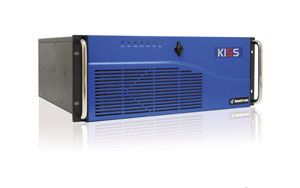

Compared to conventional servers, a feature of the Kontron Industrial Silent Server KISS 4U KTC5520 is its ability to operate in harsh environmental conditions.
It features an operating temperature range of 0° to 50°C, an operating humidity range of 10-95 per cent, all-around IP 20 protection (optionally upgradeable to IP 52 at the front), and high shock and vibration protection.
Standard applications for the rugged and silent embedded server include medical, industrial imaging and military applications, as well as high-end audio processing, storage, and simulation applications.
The Integrated Management Processor (IMP) offers VGA/2D, BMC, and KVM/VM over IP (iKVM) to support real-time access with full control by keyboard, video monitor and mouse (KVM) and virtual media (VM) by a single local computer from anywhere, at any time.
IPMI 2.0 compliant using IPMI over LAN, the server board provides the OS-independent and cross-platform interface for monitoring the server system's temperature, voltage, and fan status, among other items, and permits out-of-band management even when the main processors are not powered-on.
Additionally, three hot-swappable chassis fans on the front of the unit make for easy maintainability.
