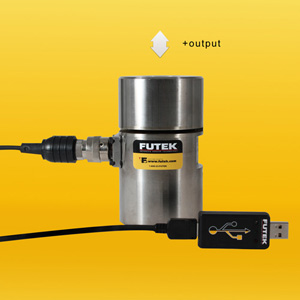

This new module is offered with USB output as an additional option.
With the USB option, engineers can eliminate the need for an analog amplifier, power supply, and display equipment.
The USB integration includes FUTEK'S USB software which allows users to monitor the output of the sensor in real time.
This S-Beam Load Cell offers a compact and robust design with a high accuracy and nonlinearity of +/-0.1 per cent, minimal deflection of 0.007 inches, and an operating temperature of -60°F to 200°F (-51.1°C to 93.3°C).
The standard LSB600 S-Beam Load Cell model has female threads that are available in M36 and 1.25 sizes.
This load cell uses Metal Foil Strain Gauge technology and the sensing body is made from high-quality 17-4ph Stainless Steel.
FUTEK'S High Capacity S-beam Load Cell is 3.25 inches tall and weighs 7 lbs (3.18kg).
FUTEK Advanced Sensor Technology, Inc. is represented in Australia and New Zealand by Metromatics.
