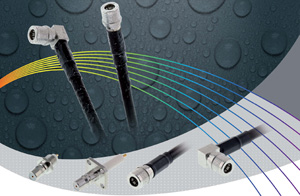

WQMA connectors offer outstanding electrical performance and have environmental characteristics that provide for long-lasting durability needed for the most demanding harsh outdoor applications, eliminating the need for bulky watertight enclosures or cable entries.
The Waterproof QMA connectors are fully intermateable and backward compatible with any QLF certified standard QMA jack and provide excellent ingress protection.
Features and benefits:
• IP68 rating when mated
• RoHS compliant
• Enhanced corrosion resistance
• 100 matings minimum for durability
• Wide temperature range -40°C / +105°C
• Power rating 200W @ 1GHz, 75°C
• Range of straight and right angle plugs available for most popular cables
• Panel sealed QMA jacks in different configurations
WQMA are the quick lock alternative to traditional SMA connectors for applications up to 6GHz and provide high density and quick connections within and to RF modules.
WQMA RF coaxial connector solutions were developed to connect equipment exposed to humidity or rain when installed outdoor or in air ventilated cabinets.
WQMA connectors support numerous outdoor applications such as portable test and GPS equipment, RFID, wireless surveillance cameras, base stations, handhelds as well as interconnections between modules, antennas and access points needed for Wi-Fi, WiMax, 3G, 4G and more.
Exclusively distributed by Rojone Pty Ltd in Australia, Radiall of France has a full range of coaxial electro-mechanical switches with more than 40,000 different part numbers.
